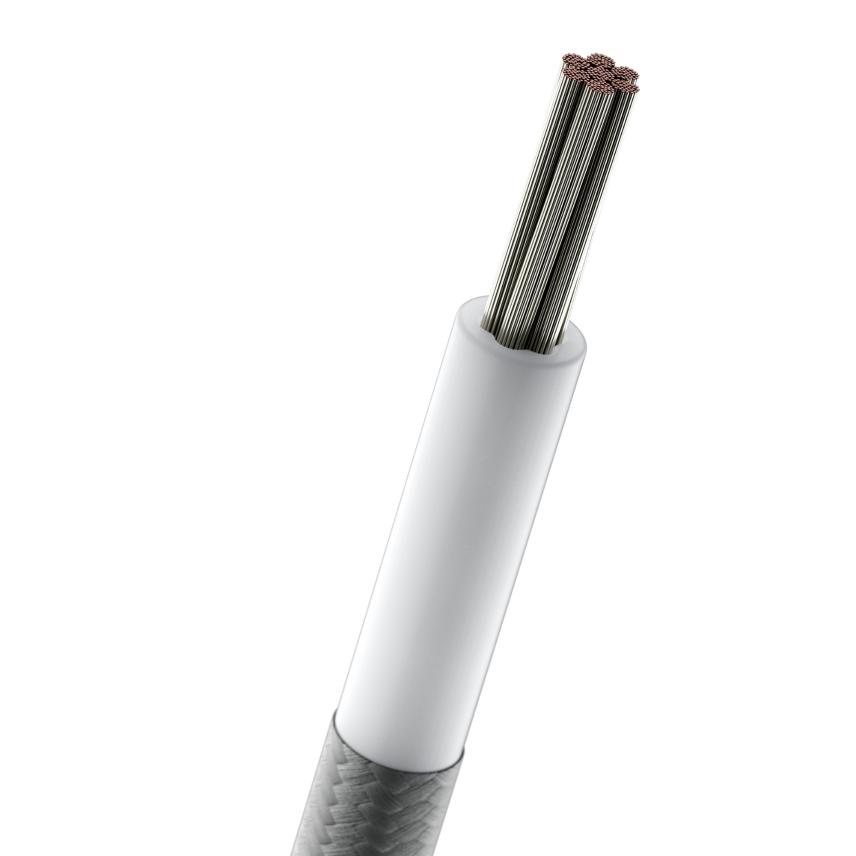

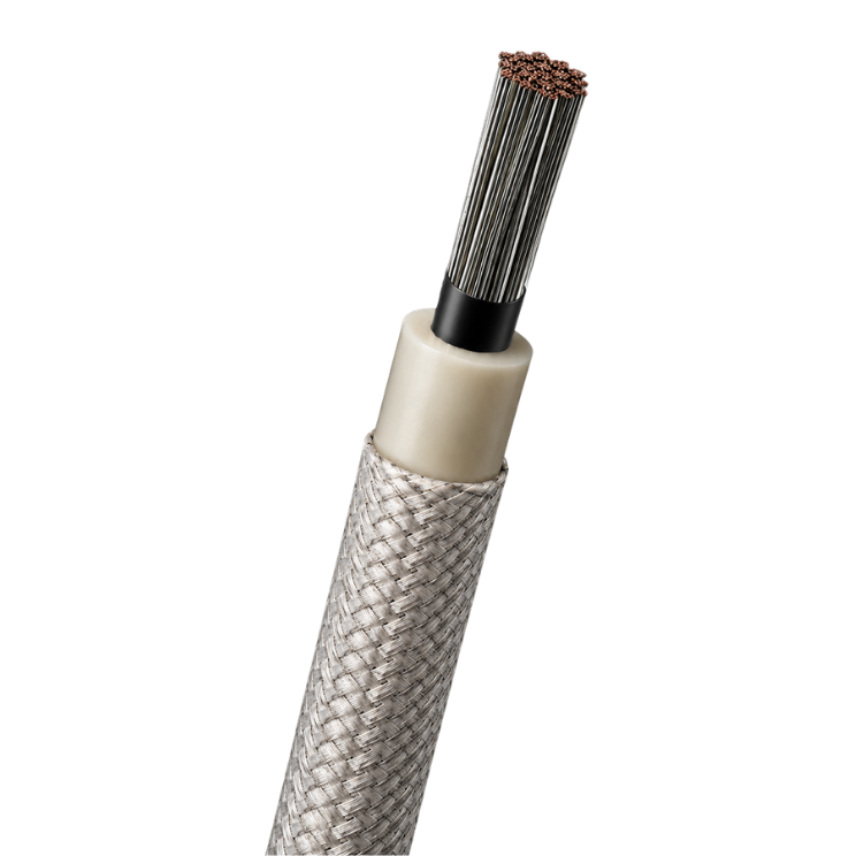

SIWO-KUL® B10 6.6 / 7.2 kV

Applications

The SIWO-KUL® B10 6.6/7.2 kV cable range is specifically developed for:

• Connection of windings in rotating machines and medium voltage transformers
• Thermal insulation class F and H
• Wiring of power cabinets, converters, and motor controls
• Industrial installations exposed to high thermal stress
• Wind, marine, and railway OEM applications

Key Benefits

• High flexibility ideal for compact installations
• Excellent thermal resistance (-55°C to +180°C continuous operation)
• Patented technology ensuring minimal partial discharges (PD), even under high stress conditions
• Compatible with major impregnation resins
• Reinforced mechanical protection
• Very good resistance to oils, UV radiation, and chemical agents
• High durability for long service life
• International approvals and certifications
• Fire performance

Certificate

• Type approval certificate : LIoyds Register LR21139304TA
• Type approval certificate : BV Marine & Offshore 09555/D0 BV, file: ACE 01/723/01
• Certificate of compliance : UL758 AWM Style 3642, file: AVLV2.E45073
• Certificate of compliance : CSA Standard C22.2 N°210-15, file: LL 36040 AWM

By choosing the SIWO-KUL® range, you opt for a flexible, robust, and durable cable designed to ensure high performance in the most demanding environments.
