Nexans SIWO-KUL® S30 3.3 / 4.2 kV
Nexans SIWO-KUL® S30 3.3 / 4.2 kV

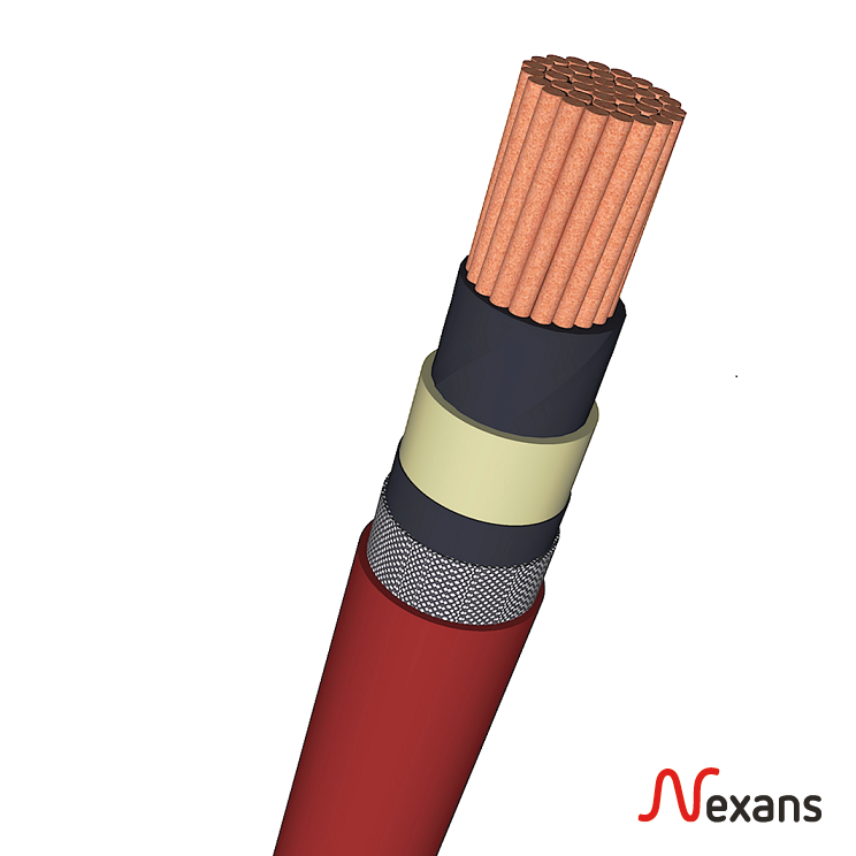

Designed for applications exposed to high thermal, electrical and mechanical stress, these flexible silicone cables feature a copper screen protected by a silicone sheath. This design ensures effective EMC shielding while maintaining excellent flexibility and outstanding resistance to demanding operating conditions. They are suitable for connecting rotating machines, transformers, power cabinets, converters and motor control systems. They are also ideal for demanding industrial installations and OEM applications in the wind energy, marine, railway and energy sectors. Their excellent resistance to thermal shock, oils and a wide range of solvents makes them a reliable and durable solution.
Lee másSIWO-KUL S30 1x16 3,3/4,2 kV RD
Nexans ref. 10216664
- Embalaje: Cut to length (m)
- Sección del conductor: 16 mm²
- Diámetro exterior nominal: 14,5 mm
- Peso aproximado: 320 kg/km
SIWO-KUL S30 1x25 3,3/4,2 kV RD
Nexans ref. 10529763
- Embalaje: Cut to length (m)
- Sección del conductor: 25 mm²
- Diámetro exterior nominal: 16,1 mm
- Peso aproximado: 427 kg/km
SIWO-KUL S30 1x35 3,3/4,2 kV RD
Nexans ref. 60500734
- Embalaje: Cut to length (m)
- Sección del conductor: 35 mm²
- Diámetro exterior nominal: 17,6 mm
- Peso aproximado: 557 kg/km
SIWO-KUL S30 1x50 3,3/4,2 kV RD
Nexans ref. 10219186
- Embalaje: Cut to length (m)
- Sección del conductor: 50 mm²
- Diámetro exterior nominal: 20,3 mm
- Peso aproximado: 836 kg/km
SIWO-KUL S30 1x70 3,3/4,2 kV RD
Nexans ref. 60009682
- Embalaje: Cut to length (m)
- Sección del conductor: 70 mm²
- Diámetro exterior nominal: 22,1 mm
- Peso aproximado: 1024 kg/km
SIWO-KUL S30 1x95 3,3/4,2 kV RD
Nexans ref. 60500535
- Embalaje: Cut to length (m)
- Sección del conductor: 95 mm²
- Diámetro exterior nominal: 24,9 mm
- Peso aproximado: 1301 kg/km
SIWO-KUL S30 1x120 3,3/4,2 kV RD
Nexans ref. 60500736
- Embalaje: Cut to length (m)
- Sección del conductor: 120 mm²
- Diámetro exterior nominal: 26,8 mm
- Peso aproximado: 1565 kg/km
SIWO-KUL S30 1x150 3,3/4,2 kV RD
Nexans ref. 10211398
- Embalaje: Cut to length (m)
- Sección del conductor: 150 mm²
- Diámetro exterior nominal: 29,2 mm
- Peso aproximado: 1918 kg/km
SIWO-KUL S30 1x185 3,3/4,2 kV RD
Nexans ref. 60500537
- Embalaje: Cut to length (m)
- Sección del conductor: 185 mm²
- Diámetro exterior nominal: 31,2 mm
- Peso aproximado: 2176 kg/km
SIWO-KUL S30 1x240 3,3/4,2 kV RD
Nexans ref. 10501404
- Embalaje: Cut to length (m)
- Sección del conductor: 240 mm²
- Diámetro exterior nominal: 33,6 mm
- Peso aproximado: 2734 kg/km
SIWO-KUL S30 1x300 3,3/4,2 kV RD
Nexans ref. 60500738
- Embalaje: Cut to length (m)
- Sección del conductor: 300 mm²
- Diámetro exterior nominal: 37,2 mm
- Peso aproximado: 3331 kg/km
Descripción
Descripción
Estándares
-
ProductoCSA C22.2 N° 210-05; IEC 60228
-
InstalaciónIEC 60092
-
EnsayoIEC 60331; IEC 60332-1; IEC 60332-3-22; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034
Applications
The SIWO-KUL® S30 3.3 kV cable range is specifically developed for:
- Connection of rotating machines and transformers
- Wiring of power cabinets, converters and motor controls
- Industrial installations exposed to high mechanical stress
- Vibrating environments requiring long-term flexibility
- Wind, marine and railway OEM applications
Key Advantages
- Excellent flexibility, ideal for compact installations
- Outstanding thermal resistance (-55°C to +180°C continuous operation)
- Metallic braid shielding against electromagnetic interference
- Silicone outer sheath
- Very good resistance to oils, UV and chemical agents
- High durability for long service life
- International approvals and certifications
- Custom-made terminations and lengths available
Certificate
- Type approval certificate : LIoyds Register LR21139304TA
- Type approval certificate : BV Marine & Offshore 09555/D0 BV, file: ACE 01/723/01
- Certificate of compliance : CSA Standard C22.2 N°210-15, file: LL 36040 AWM
By choosing the SIWO-KUL® range, you opt for a flexible, robust and durable cable designed to guarantee high performance in the most demanding environments.
