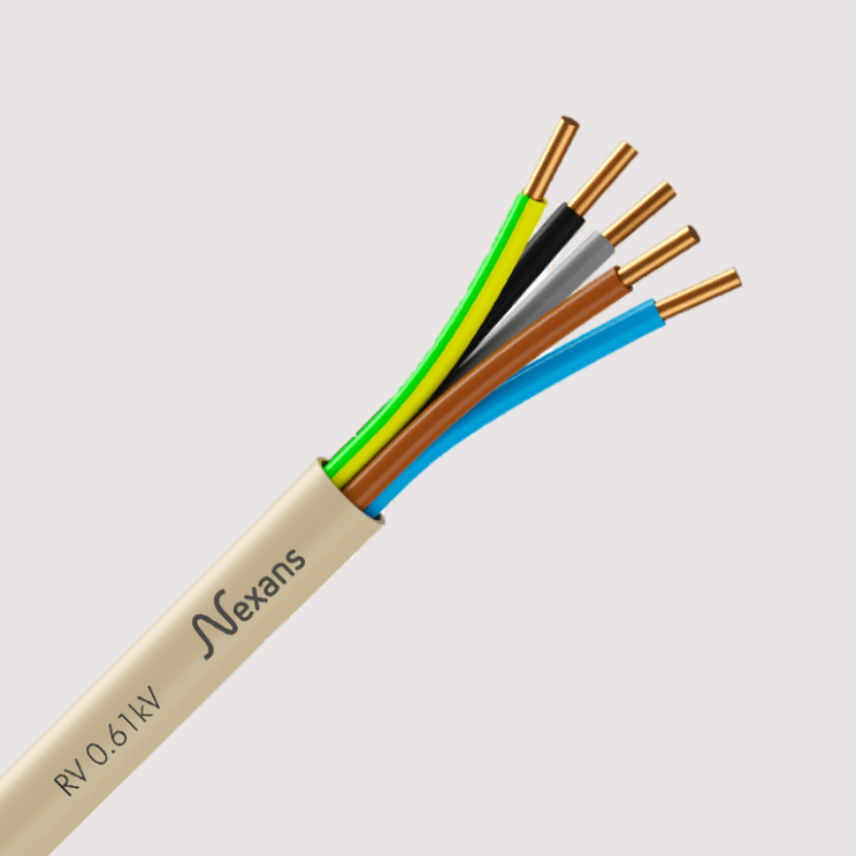

Nexans RV 0.6/1kV CREMA

Application

These RV 0.6/1Kv cables with XLPE insulation and PVC outer sheath can be used in all low voltage power installations. Multiconductors cables are adapted to remote control and telecontrol installations.

METRIUM™ metric marking is available for all packaging in coil)

Installation

These cables can be fixed on cable trays, within conduits or fixed to walls, installed outside. They also can be buried directly with extra mechanical protection.

Marking

NEXANS Factory n°  RV 0.6/1kV n (G) s mm² IEC 60502 90° Eca

• n = number of cores
• s = section in mm²
• G = with Green-Yellow

Permissible current and voltage drop are given

a) in free air, sheltered from sun, on cable tray or bracket, on cable ladder, and spaced from the wall, temperature = 30°C.
b) buried with thermal resistivity of the ground 1Km/W, laying depth : 600 mm, temperature = 20°C.

If conditions are differents, apply correction factors from NF C 15-100 standard  or equivalent national standard

Voltage drop

Calculated with cos φ = 0,8
