Nexans SIWO-KUL® B10 1.1 / 1.5 kV
Nexans SIWO-KUL® B10 1.1 / 1.5 kV

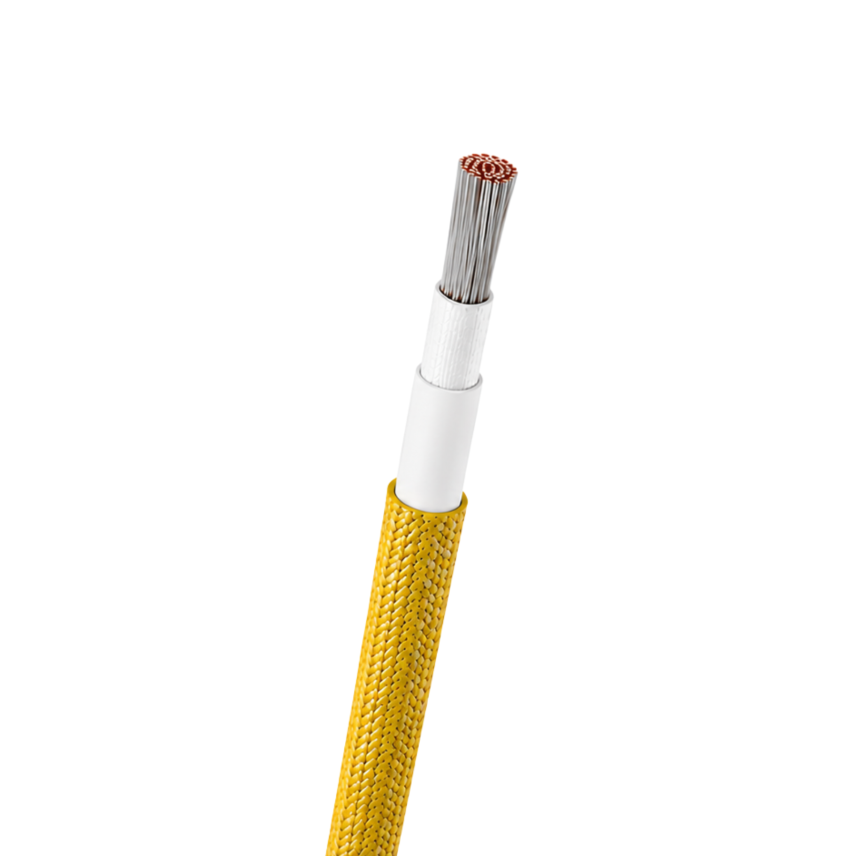

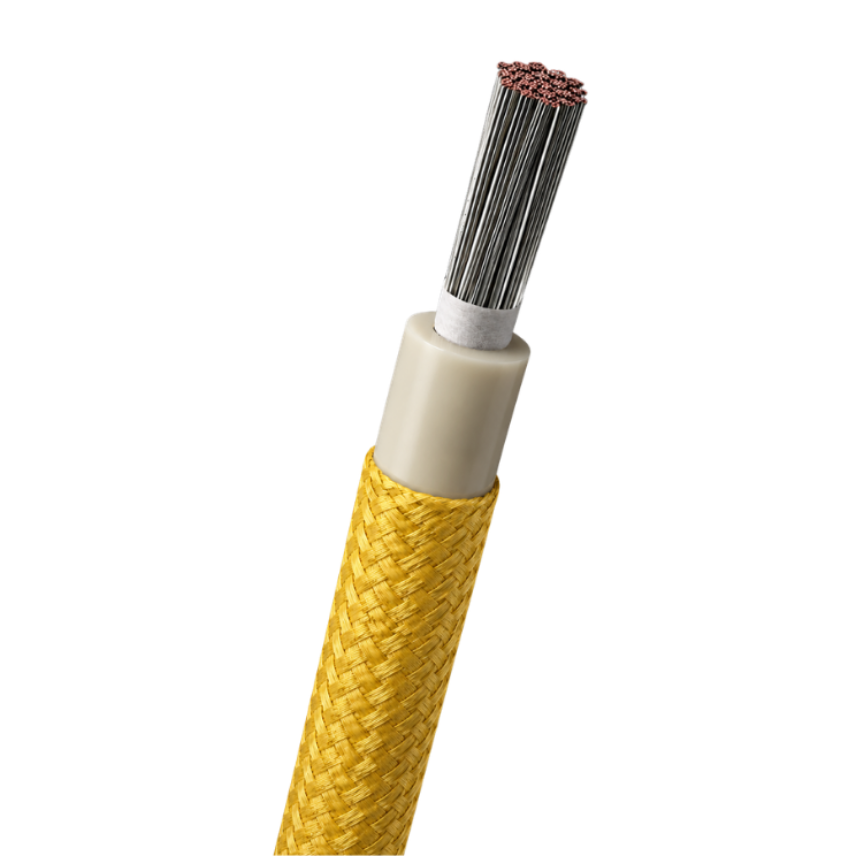

Designed for demanding industrial environments, SIWO-KUL® B10 flexible single-core cables combine a flexible tinned copper conductor with silicone insulation, protected by a synthetic yarn braid with polyurethane (PUR) coating. This construction provides excellent flexibility, high electrical reliability and outstanding resistance to extreme temperatures. It also offers good resistance to mechanical stress, oils and many chemical agents. These cables are particularly suitable for connecting the windings of rotating machines and class F and H transformers, as well as motors, generators, converters and industrial equipment used in railway and marine applications, where repeated thermal cycles and demanding operating conditions are encountered.
Read moreSIWO-KUL B10 1x4.0 1,1KV YE
Nexans ref. 10533991
- Packaging: Cut to length (m)
- Conductor cross-section: 4 mm²
- Nominal outer diameter: 5.55 mm
- Approximate weight: 58 kg/km
- Minimum static operating bending radius: 28 mm
SIWO-KUL B10 1x6.0 1,1KV YE
Nexans ref. 10533992
- Packaging: Cut to length (m)
- Conductor cross-section: 6 mm²
- Nominal outer diameter: 6.0 mm
- Approximate weight: 75 kg/km
- Minimum static operating bending radius: 30 mm
SIWO-KUL B10 1x10 1,1KV YE
Nexans ref. 10533947
- Packaging: Cut to length (m)
- Conductor cross-section: 10 mm²
- Nominal outer diameter: 6.95 mm
- Approximate weight: 119 kg/km
- Minimum static operating bending radius: 35 mm
SIWO-KUL B10 1x16 1,1KV YE
Nexans ref. 10533949
- Packaging: Cut to length (m)
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 8.7 mm
- Approximate weight: 183 kg/km
- Minimum static operating bending radius: 44 mm
SIWO-KUL B10 1x25 1,1KV YE
Nexans ref. 10148807
- Packaging: Cut to length (m)
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 10.05 mm
- Approximate weight: 258 kg/km
- Minimum static operating bending radius: 50 mm
SIWO-KUL B10 1x35 1,1KV YE
Nexans ref. 10148824
- Packaging: Cut to length (m)
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 11.2 mm
- Approximate weight: 361 kg/km
- Minimum static operating bending radius: 56 mm
SIWO-KUL B10 1x50 1,1KV YE
Nexans ref. 10148825
- Packaging: Cut to length (m)
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 13.15 mm
- Approximate weight: 507 kg/km
- Minimum static operating bending radius: 66 mm
SIWO-KUL B10 1x70 1,1KV YE
Nexans ref. 10148826
- Packaging: Cut to length (m)
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 15.1 mm
- Approximate weight: 673 kg/km
- Minimum static operating bending radius: 75 mm
SIWO-KUL B10 1x95 1,1KV YE
Nexans ref. 10148827
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 17.2 mm
- Approximate weight: 887 kg/km
- Minimum static operating bending radius: 86 mm
SIWO-KUL B10 1x120 1,1KV YE
Nexans ref. 10148828
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 19.3 mm
- Approximate weight: 1120 kg/km
- Minimum static operating bending radius: 97 mm
SIWO-KUL B10 1x150 1,1KV YE
Nexans ref. 10533948
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 22.3 mm
- Approximate weight: 1467 kg/km
- Minimum static operating bending radius: 112 mm
SIWO-KUL B10 1x185 1,1KV YE
Nexans ref. 10148830
- Packaging: Cut to length (m)
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 23.6 mm
- Approximate weight: 1697 kg/km
- Minimum static operating bending radius: 118 mm
SIWO-KUL B10 1x240 1,1KV YE
Nexans ref. 10148995
- Packaging: Cut to length (m)
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 26.4 mm
- Approximate weight: 2225 kg/km
- Minimum static operating bending radius: 132 mm
SIWO-KUL B10 1x300 1,1KV YE
Nexans ref. 10162914
- Packaging: Cut to length (m)
- Conductor cross-section: 300 mm²
- Nominal outer diameter: 29.6 mm
- Approximate weight: 2805 kg/km
- Minimum static operating bending radius: 148 mm
Description
Description
Standards
-
ProductCSA C22.2 N° 210-05; EN 45545 - HL3; IEC 60228; UL 758
-
InstallationIEC 60092
-
TestIEC 60331; IEC 60332-1; IEC 60332-3-22; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034
Application
The SIWO-KUL® B10 1.1/1.5 kV cable range is specifically developed for:
- Connection of windings in rotating machines and transformers with thermal insulation class F and H
- Wiring of power cabinets, converters, and motor controls
- Industrial installations exposed to high thermal stress
- Wind, marine, and railway OEM applications
- AC/DC interconnections for PV systems and battery storage installations
Key Benefits
- High flexibility ideal for compact installations
- Excellent thermal resistance (-55°C to +180°C continuous operation)
- Compatible with major impregnation resins
- Reinforced mechanical protection
- Very good resistance to oils, UV radiation, and chemical agents
- High durability for long service life
- International approvals and certifications
- Fire performance
Certificate
- Type approval certificate : LIoyds Register LR21139304TA
- Type approval certificate : BV Marine & Offshore 09555/D0 BV, file: ACE 01/723/01
- Certificate of compliance : UL758 AWM Style 3640, file: AVLV2.E45073
- Certificate of compliance : CSA Standard C22.2 N°210-15, file: LL 36040 AWM
By choosing the SIWO-KUL® range, you opt for a flexible, robust, and durable cable designed to ensure high performance in the most demanding environments.
