Nexans SIWO-KUL® B20 3.3 / 4.2 kV
Nexans SIWO-KUL® B20 3.3 / 4.2 kV

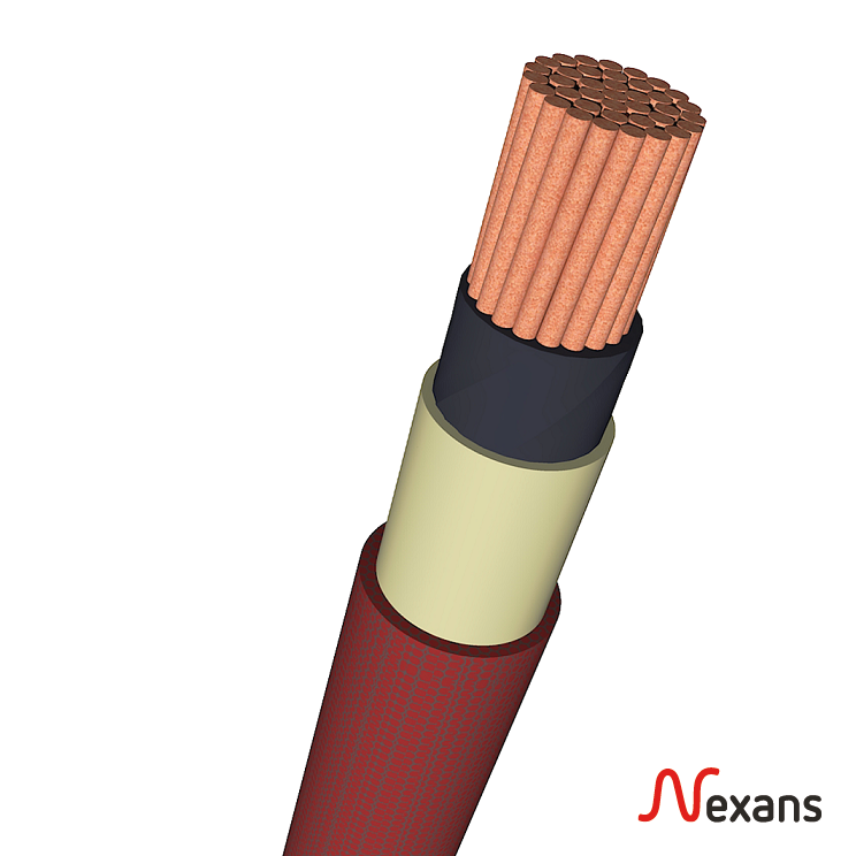

Combining a flexible tinned copper conductor with silicone insulation, protected by a polyester braid with silicone coating, these flexible single-core cables offer excellent flexibility, high electrical reliability and high resistance to extreme temperatures. Their construction also ensures good resistance to mechanical stresses, oils and many chemical agents. They are particularly suitable for the connection of windings of rotating machines and transformers of thermal classes F and H, as well as motors, generators, converters and industrial equipment in the railway and marine sectors, subjected to repeated thermal cycles and demanding operating conditions.
Read moreSIWO-KUL B20 1x16 3,3/4,2 kV RD
Nexans ref. 10503812
- Packaging: Cut to length (m)
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 10.55 mm
- Approximate weight: 200 kg/km
- Minimum static operating bending radius: 52 mm
SIWO-KUL B20 1x25 3,3/4,2 kV RD
Nexans ref. 10209643
- Packaging: Cut to length (m)
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 12.2 mm
- Approximate weight: 290 kg/km
- Minimum static operating bending radius: 60 mm
SIWO-KUL B20 1x35 3,3/4,2 kV RD
Nexans ref. 10503813
- Packaging: Cut to length (m)
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 13.4 mm
- Approximate weight: 390 kg/km
- Minimum static operating bending radius: 66 mm
SIWO-KUL B20 1x50 3,3/4,2 kV RD
Nexans ref. 10501473
- Packaging: Cut to length (m)
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 15.15 mm
- Approximate weight: 556 kg/km
- Minimum static operating bending radius: 76 mm
SIWO-KUL B20 1x70 3,3/4,2 kV RD
Nexans ref. 10195615
- Packaging: Cut to length (m)
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 17.1 mm
- Approximate weight: 730 kg/km
- Minimum static operating bending radius: 86 mm
SIWO-KUL B20 1x95 3,3/4,2 kV RD
Nexans ref. 10501474
- Packaging: Cut to length (m)
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 19.0 mm
- Approximate weight: 944 kg/km
- Minimum static operating bending radius: 95 mm
SIWO-KUL B20 1x120 3,3/4,2 kV RD
Nexans ref. 10503814
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 21.6 mm
- Approximate weight: 1215 kg/km
- Minimum static operating bending radius: 109 mm
SIWO-KUL B20 1x150 3,3/4,2 kV RD
Nexans ref. 10503815
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 23.3 mm
- Approximate weight: 1490 kg/km
- Minimum static operating bending radius: 118.5 mm
SIWO-KUL B20 1x185 3,3/4,2 kV RD
Nexans ref. 10503816
- Packaging: Cut to length (m)
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 24.6 mm
- Approximate weight: 1736 kg/km
- Minimum static operating bending radius: 123 mm
SIWO-KUL B20 1x240 3,3/4,2 kV RD
Nexans ref. 10503817
- Packaging: Cut to length (m)
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 27.7 mm
- Approximate weight: 2266 kg/km
- Minimum static operating bending radius: 139 mm
SIWO-KUL B20 1x300 3,3/4,2 kV RD
Nexans ref. 10503818
- Packaging: Cut to length (m)
- Conductor cross-section: 300 mm²
- Nominal outer diameter: 29.9 mm
- Approximate weight: 2816 kg/km
- Minimum static operating bending radius: 150 mm
Description
Description
Standards
-
ProductCSA C22.2 N° 210-05; EN 45545 - HL3; IEC 60228; UL 758
-
InstallationIEC 60092
-
TestIEC 60331; IEC 60332-1; IEC 60332-3-22; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034
Applications
The SIWO-KUL® B20 3.3/4.2 kV cable range is specifically developed for:
- Connection of windings in rotating machines and transformers with thermal insulation class F and H
- Wiring of power cabinets, converters, and motor controls
- Industrial installations exposed to high thermal stress
- Wind, marine, and railway OEM applications
- AC/DC interconnections for PV systems and battery storage installations
Key Benefits
- High flexibility ideal for compact installations
- Excellent thermal resistance (-55°C to +180°C continuous operation)
- Compatible with major impregnation resins
- Mechanical protection
- Good resistance to oils, UV radiation, and chemical agents
- High durability for long service life
- International approvals and certifications
- Fire performance
Certificate
- Type approval certificate : LIoyds Register LR21139304TA
- Type approval certificate : BV Marine & Offshore 09555/D0 BV, file: ACE 01/723/01
- Certificate of compliance : UL758 AWM Style 3641, file: AVLV2.E45073
- Certificate of compliance : CSA Standard C22.2 N°210-15, file: LL 36040 AWM
By choosing the SIWO-KUL® range, you opt for a flexible, robust, and durable cable designed to ensure high performance in the most demanding environments.
