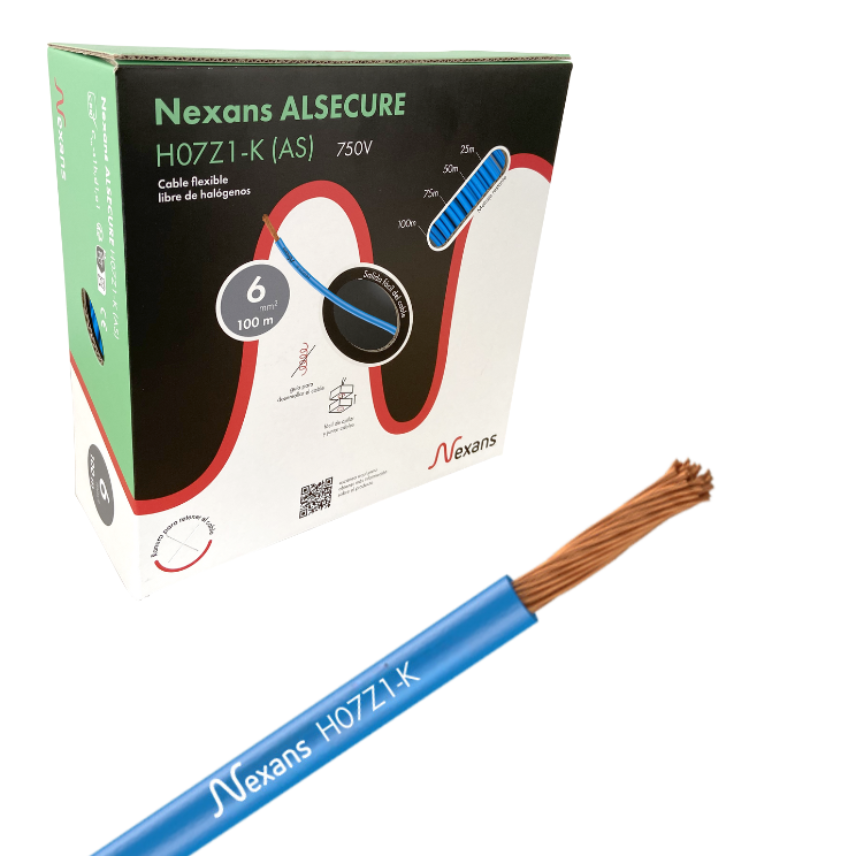

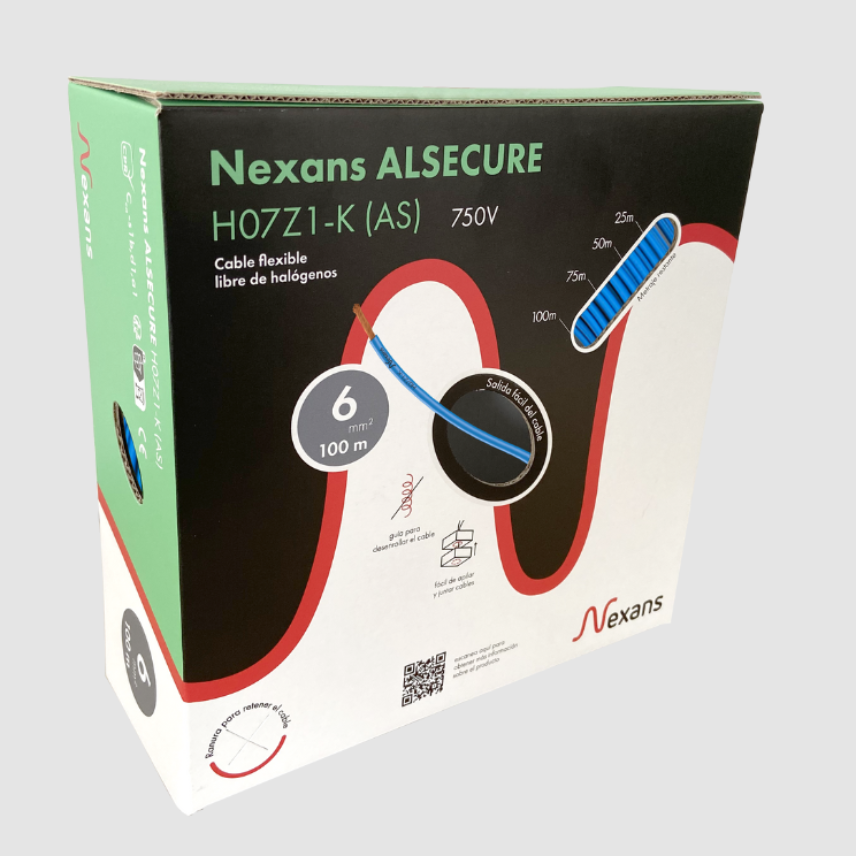

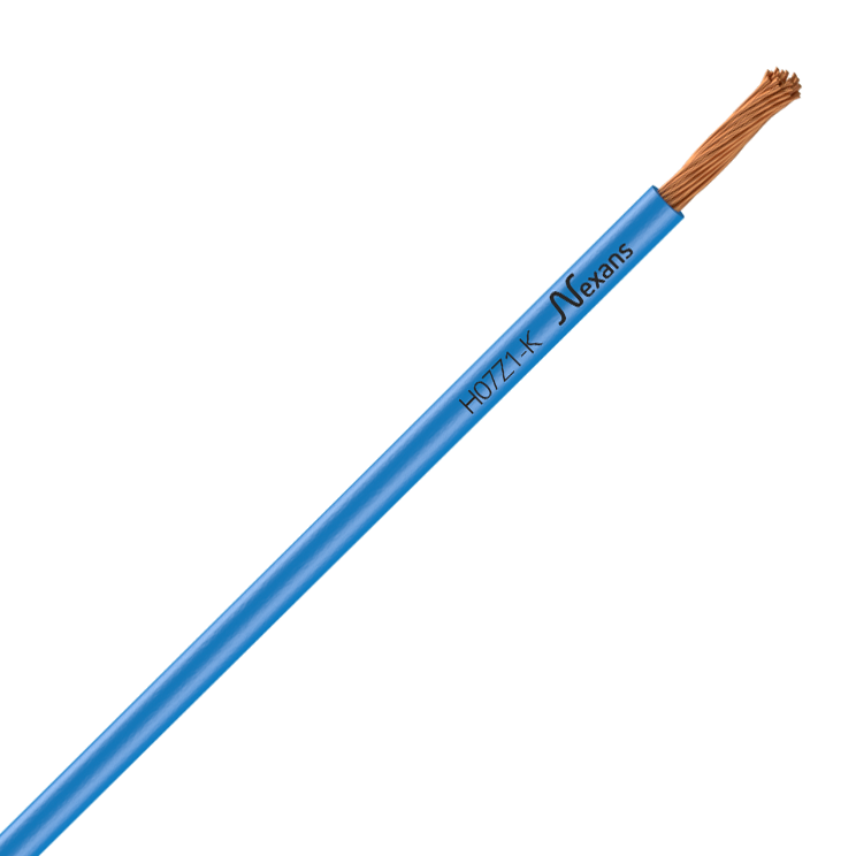

Nexans H07Z1-K Easybox 1x6 Blue 100m
Nexans H07Z1-K Easybox 1x6 Blue 100m
Nexans H07Z1-K are used for fixed secured installations
Read more- Nexans ref. : 10286828
Description
Description
Standards
-
ProductEN 50525-3-31; EN 50575; IEC 60228; UNE 21022; UNE 211002
-
TestEN 50266-2-4; EN 50267-2-2; IEC 60332-1; IEC 60332-3-24; IEC 61034-2; NF C32-070/C2; UNE EN 50267-2-3 ; UNE-EN 50265-2-1
Application
Flexible insulated conductors Nexans H07Z1-K are used for fixed secured protected installation.
Halogen free, fire retardant with low emission of smoke, Nexans H07Z1-K may be used in public buildings or areas where fire safety is concerned
Installation
Nexans H07Z1-K can be installed in open air, in conduit, in cable ducting, in switch cabinets.
Thanks to the sliding properties of the insulation, installation is made easier while pulling in...
Encuentra este producto en EASYCALC™
New cardboard packaging for H07V-K and H07Z1-K
Color code for Nexans Alsecure H07Z1-K cross-section
Cable colors available
-
-
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Flexible class 5
Conductor material
Bare copper
Insulation
Halogen free, TI 7 acc. EN 50363-7
Lead free
Yes
Halogen free
Yes
Conductor shape
Circular
Insulation colour
Blue
With Green/Yellow core
No
With smaller neutral conductor
No
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
6 mm²
Approximate weight
65 kg/km
Neutral conductor section (when smaller)
- mm²
Number of cores
1
Outer Diameter
4.7 mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
450/750 V
Max. DC resistance of the conductor at 20°C
3.3 Ohm/km
Maximum operating voltage
750 V
Permissible current rating in open air
41 A
Test voltage
2500 V
Mechanical characteristics
Mechanical characteristics
Cable flexibility
Flexible
Mechanical resistance to impacts
Low
Usage characteristics
Usage characteristics
Max. conductor temperature in service
70 °C
Fire retardant
EN IEC 60332-3-24 (cat C)
Flame retardant
EN 50265-2-1
Smoke density
EN 50268-2
Chemical resistance
Restricted to oil, acid & base
Maximum operating temperature
70 °C
Packaging
Coil
Water proof
Limited
Weather resistance
Restricted, not ozon stable
Resources
Resources
Documentation
H07Z1-K PEP
pdf — 4.3 MB
Licence USE H07Z1-K
pdf — 1.1 MB
Brochure Nexans H07Z1-K
pdf — 2.1 MB
CMC H07Z1-K
pdf — 778.9 kB
Current capacity table PVC insulation multicore three phase
| Conductor cross-section | A2 - Multi-core cable in conduit in a thermally insulated wall | B2 - Multi-core cable in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | E - Multi-core cable in free air | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
Conductor cross-section 6.0 |
A2 - Multi-core cable in conduit in a thermally insulated wall
29.0 |
B2 - Multi-core cable in conduit on a wooden wall
23.0 |
C - Single-core or multi-core cable on a wooden wall
34.0 |
D1 - Single-core or Multi-core cable in ducts in the ground
27.0 |
D2 - Single-core or Multi-core cables designed to be buried directly in the ground
41.0 |
E - Multi-core cable in free air
32.0 |
mm² 38.0 |
Cu 30.0 |
Al 41.0 |
Cu 0.0 |
Al 43.0 |
Cu 33.0 |
Current capacity table PVC insulation multicore single phase
| Conductor cross-section | A2 - Multi-core cable in conduit in a thermally insulated wall | B2 - Multi-core cable in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | E - Multi-core cable in free air | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
Conductor cross-section 6.0 |
A2 - Multi-core cable in conduit in a thermally insulated wall
32.0 |
B2 - Multi-core cable in conduit on a wooden wall
25.0 |
C - Single-core or multi-core cable on a wooden wall
38.0 |
D1 - Single-core or Multi-core cable in ducts in the ground
30.0 |
D2 - Single-core or Multi-core cables designed to be buried directly in the ground
46.0 |
E - Multi-core cable in free air
36.0 |
mm² 46.0 |
Cu 36.0 |
Al 48.0 |
Cu 0.0 |
Al 51.0 |
Cu 39.0 |
Current capacity table PVC insulation single core three phase
| Conductor cross-section | A1 - Insulated conductors in conduit in a thermally insulated wall | B1 - Insulated conductors in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | F - Single-core flat cables, touching in free air | Ft - Single-core trefoil cables, touching in free air | G - Single-core horizontal spaced | Gv - Single-core flat vertical spaced | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
Conductor cross-section 6.0 |
A1 - Insulated conductors in conduit in a thermally insulated wall
31.0 |
B1 - Insulated conductors in conduit on a wooden wall
24.0 |
C - Single-core or multi-core cable on a wooden wall
36.0 |
D1 - Single-core or Multi-core cable in ducts in the ground
28.0 |
D2 - Single-core or Multi-core cables designed to be buried directly in the ground
41.0 |
F - Single-core flat cables, touching in free air
32.0 |
Ft - Single-core trefoil cables, touching in free air
38.0 |
G - Single-core horizontal spaced
30.0 |
Gv - Single-core flat vertical spaced
41.0 |
mm² 0.0 |
Cu 0.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
Cu 0.0 |
Al 0.0 |
Current capacity table PVC insulation single core single phase
| Conductor cross-section | A1 - Insulated conductors in conduit in a thermally insulated wall | B1 - Insulated conductors in conduit on a wooden wall | C - Single-core or multi-core cable on a wooden wall | D1 - Single-core or Multi-core cable in ducts in the ground | D2 - Single-core or Multi-core cables designed to be buried directly in the ground | F - Single-core flat cables, touching in free air | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm² | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al | Cu | Al |
Conductor cross-section 6.0 |
A1 - Insulated conductors in conduit in a thermally insulated wall
34.0 |
B1 - Insulated conductors in conduit on a wooden wall
26.0 |
C - Single-core or multi-core cable on a wooden wall
41.0 |
D1 - Single-core or Multi-core cable in ducts in the ground
32.0 |
D2 - Single-core or Multi-core cables designed to be buried directly in the ground
46.0 |
F - Single-core flat cables, touching in free air
36.0 |
mm² 46.0 |
Cu 36.0 |
Al 48.0 |
Cu 0.0 |
Al 0.0 |
Cu 0.0 |
Selling & delivery Information
Ink jet marking
USE - HAR- ALSECURE H07Z1-K (AS) TYPE 2 AENOR PLANT N° NEXANS – DAY YEAR
Declaration of Performance
- Declaration of Performance n� : 1000150-FRAU
- Certification Date : 7/11/25
- AVCP (Assessment and Verification of Constancy of Performance) : System 1+
- Notified body : NB 099
- Declared performance : Cca-s1b,d1,a1
